Acoustic Pig Tracker

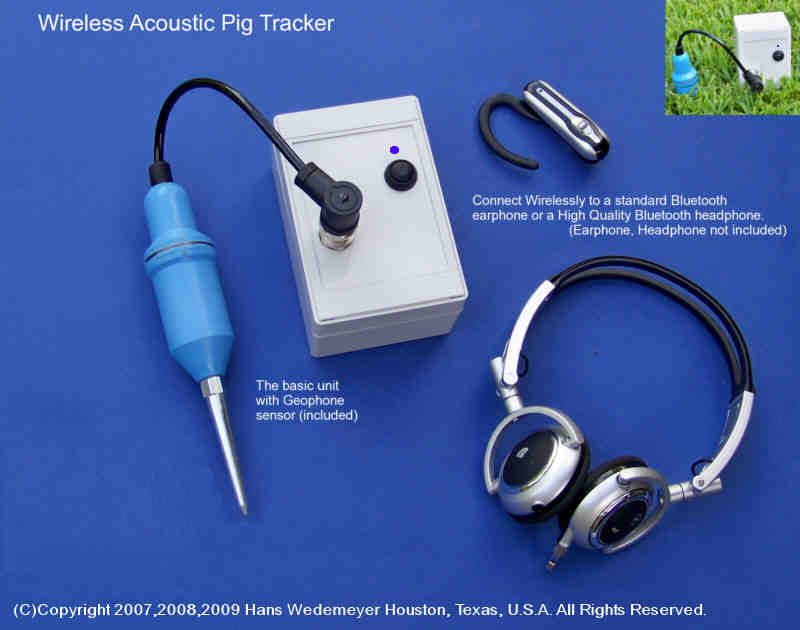

The Wireless Acoustic Pig Tracker (WAPT) can be used with several different audio connection devices. For complete freedom of movement you can use your existing Bluetooth® earphone or Bluetooth® headphones to monitor the pig sounds from WAPT. One can adjust volume using the built-in controls on either unit.

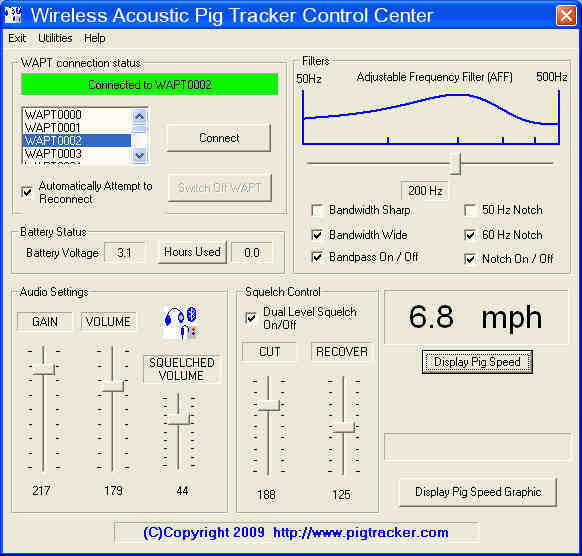

Many pig trackers already have laptop PC’s available in their truck for GPS mapping purposes, etc. A PC program (provided with WAPT) allows the operator to remote access to:

Adjustable Receiver sensitivity.

Option to select and adjust a Variable Frequency Filter which can enhance the weld signals and lower wind and rain noise.

Option to select notch filters to eliminate 60Hz hum or 120Hz cathodic protection noise. (50Hz or 100Hz in Europe)

Option to select and adjust a two level squelch circuit which lowers volume for high level signals.

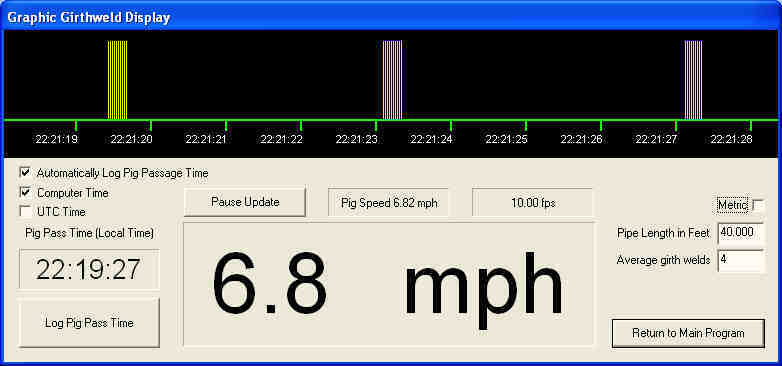

Option for Pig Speed Display (requiring reliable girth weld signals).

Pig Pass Time Logging. This feature copies the passing time to the Windows Clipboard and can then be pasted into the tracking sheet.

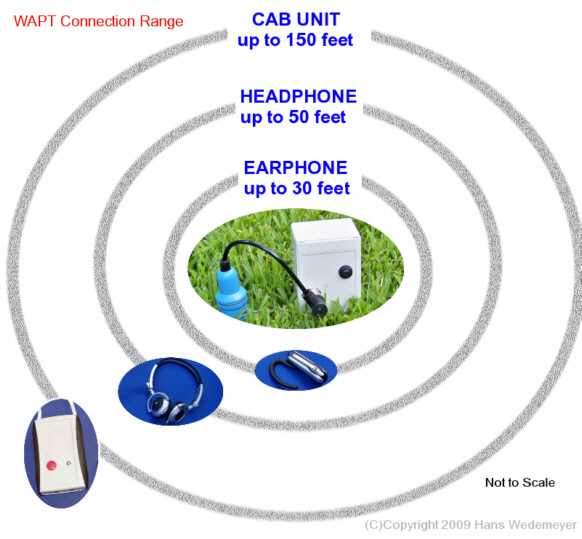

The ranges shown in the image below are approximate and depend upon the actual location and placement of the WAPT and the device to which it is connected.

In practical field tests it has been possible to connect up to 80 feet with good quality Bluetooth® headphones. Using headphones inside a truck cab is possible but the range will be reduced due to the surrounding metalwork.

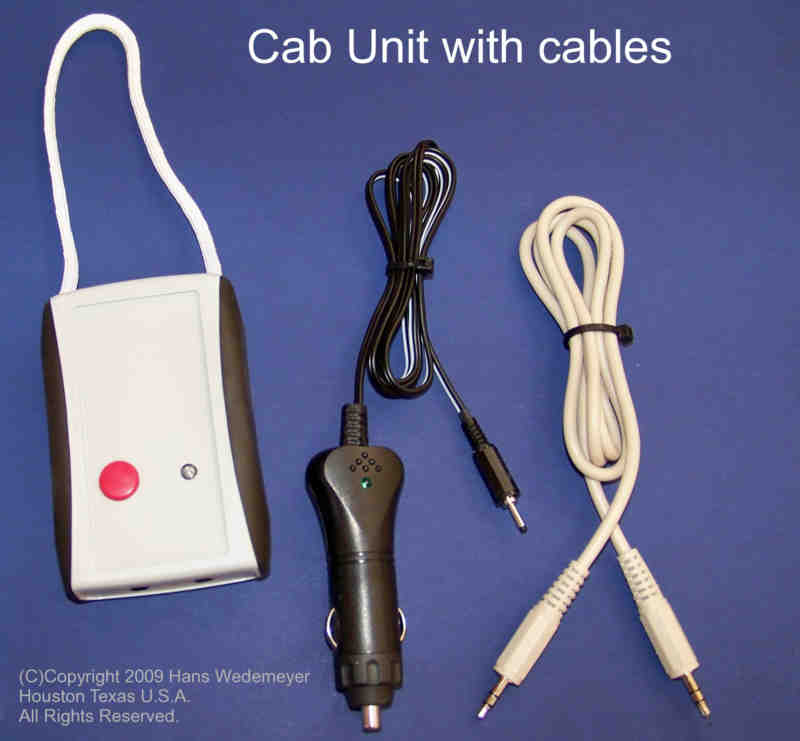

The Cab unit is not head-mounted and thus can run at a power level well above earphone or headphones, giving increased range. In addition, it is made to hang at mid window height on any convenient fixture (mirror, sun visor or handle) to facilitate open and clear connections from the truck to the WAPT.

The Cab unit output can be monitored with passive (wired) headphones or by cable connection to the Auxillary input to the vehicle audio system.

Full list of WAPT features:

Wireless means no more tangled cables
Freedom of movement when used with headphones
Dual Level fully adjustable Squelch
Adjustable Frequency Filtering (AFF)
Rain Noise Reduction/Cancellation (using AFF)
Wind Noise Reduction/Cancellation (using AFF)
System Sensitivity fully adjustable
Notch Filter for 60Hz hum cancellation (50Hz in Europe)
Notch filter for 120Hz Cathodic Protection transformer hum cancellation (100Hz in Europe)
Disconnection Warning Alarm (with Cab Unit: You left the WAPT behind)
Long Battery Life with Battery Level Monitoring

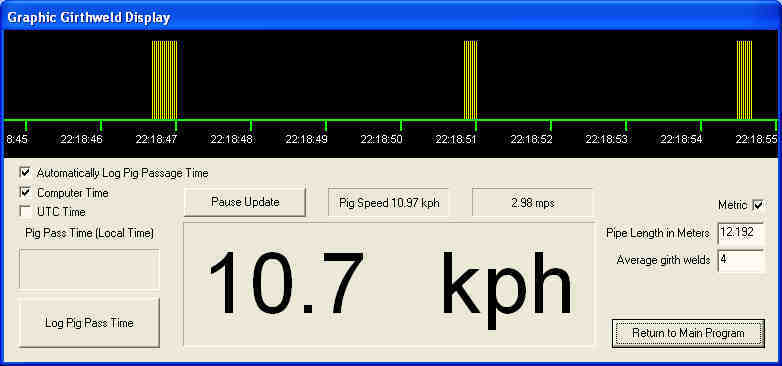

Pig Speed and Girth Weld Display
Metric or Imperial speed display (mph or kph or km/h)
Pig Pass Time Logging to Windows clip board
Once Setup can be used without a computer
Free Windows WAPT Control Center Program
Free software updates when available.
Coming soon: Control Center for Windows Mobile Smartphone to augment the Headphone use by providing full range of adjustments (Extra cost but not expensive)
“An acoustic pig tracking experience like you never heard it before.” © Hans Wedemeyer

Click for larger image

Coming Soon: Wireless Acoustic Pig Tracker Control Center for Smartphone (Windows Mobile 6) and perhaps for the iPhone.

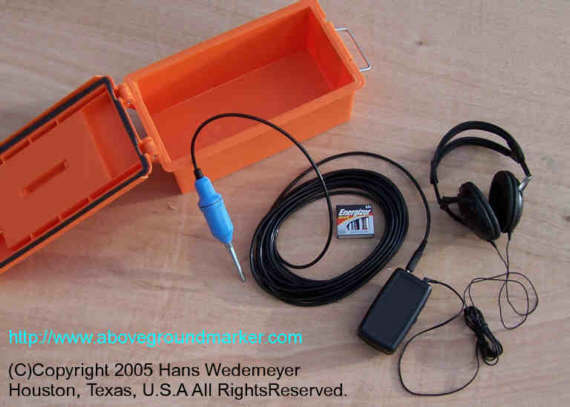

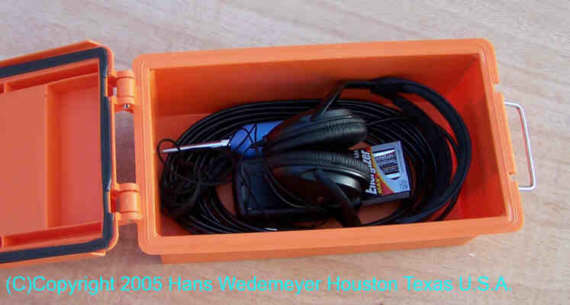

link to original acoustic tracker
